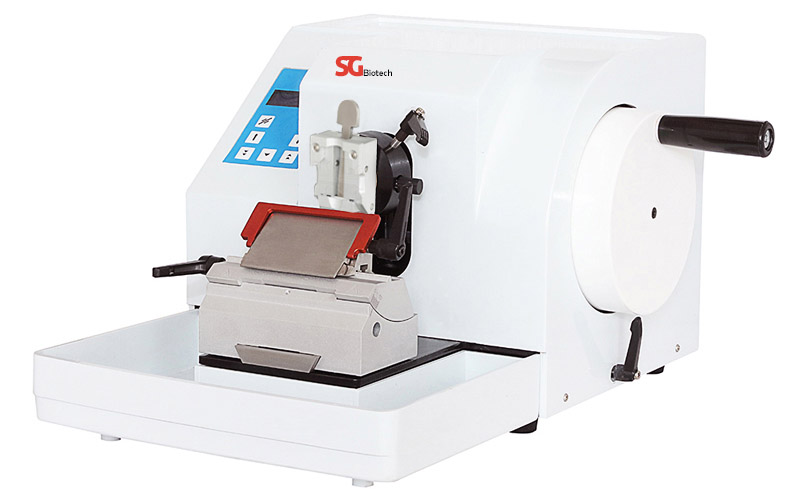

SGB AM-3315 Semi-automatic Microtome

Features

l It adopted the advanced import actuation system so that can slice the tissues more precisely ,more reliable  and quiet.

l The LCD display show the slice and trimming thickness ,section counter in Chinese or English version.

l It have special function of sample retraction  .it can avoid the damage due to the attrition between sample and the back of knife so that the slice is more smooth and the life of the knife is more longer .

l The hand wheel can be locked in any position to make the section as safe and convenient as possible

l The waste bath can be disassembled easily

l It has safety alarm system

Category: Tag:

Technical Specifications

PARAMETER SPECIFICATIONS
Slice thickness range 0.5μm~100μm(3~5um is the best slicing effect)
Section thickness setting 0.5~5μm,in 0.5μm increment
5~20μm,in 1μm increments
 20~60μm,in 5μm increments
60~100μm,in 10μm increments
Trimming section range 1~600μm
Trimming thickness setting 1~10μm,in 1μm increment ;
10~20μm,in 2μm increments
20~50μm,in 5μm increments;
50~100μm,in 10μm increments;
      100～600μm,in 50μm increments
Horizontal specimen stroke 20mm
Vertical specimen stroke 55mm
Specimen retraction 20um
Slip precision ± 5%
Maximal slice section f50 × 45mm
Dimension 520 x 450 x 300mm

Accessories

Standard Setting List

  1. Disposable Blade Holder   1 pc
  2. Specimen Cassette            1 pc
  3. Fuse (2A)                            2 pcs
  4. Power line                         1 line
  5. 5. Hexagonal Wrench            1 set
  6. 6. Brush                                 1 pc

Optional Accessories

Paraffin Wax Holder

Feather Microtome Blade



Package Info

Dimensions: 530 ×520×480mm

Weight:45 kgs
